PASSIVE LINE ARRAY
SPEAKER SYSTEM
Precision Coverage. Every Seat.
Consistent, controlled coverage across any space

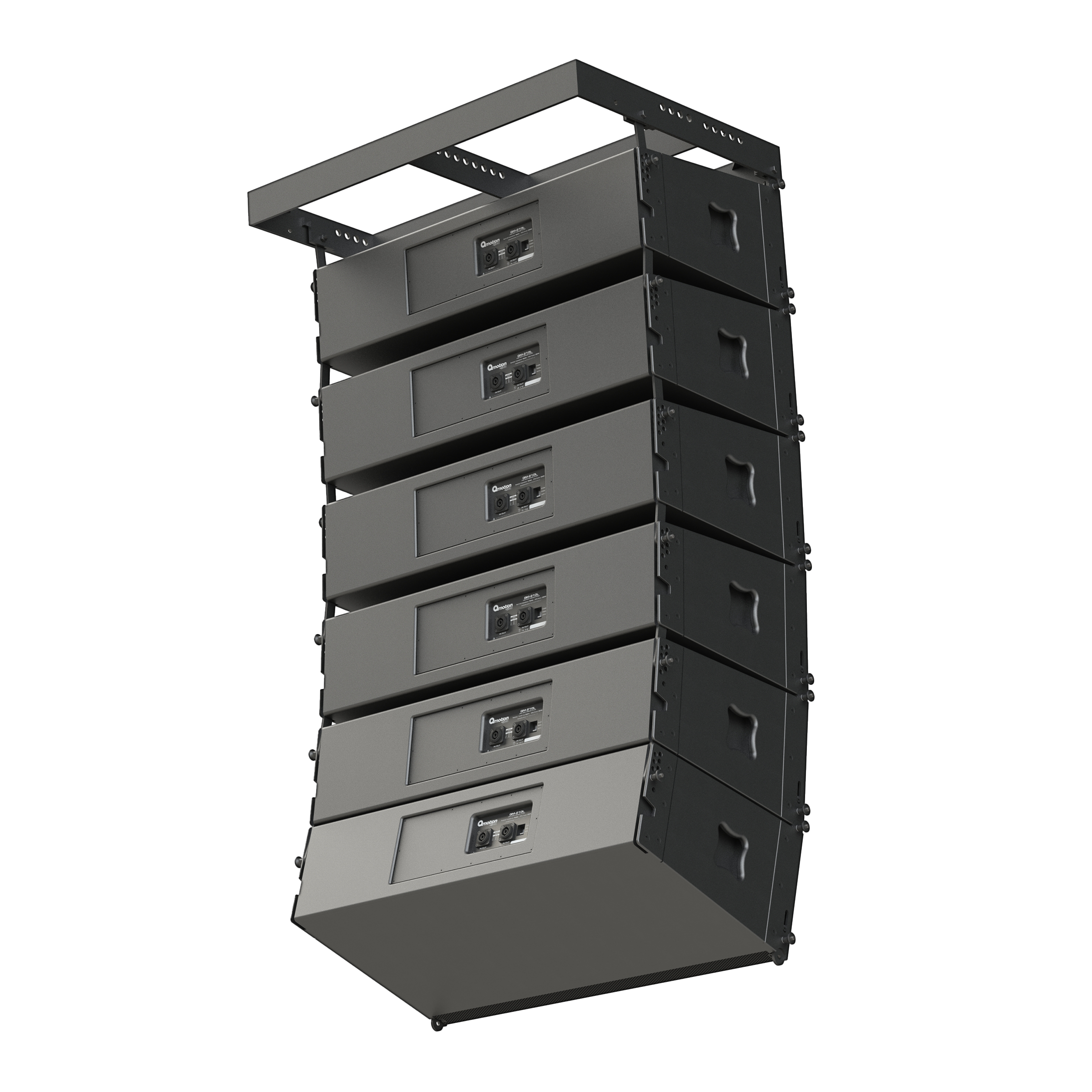

QM-210L
Passive Line Array Speaker

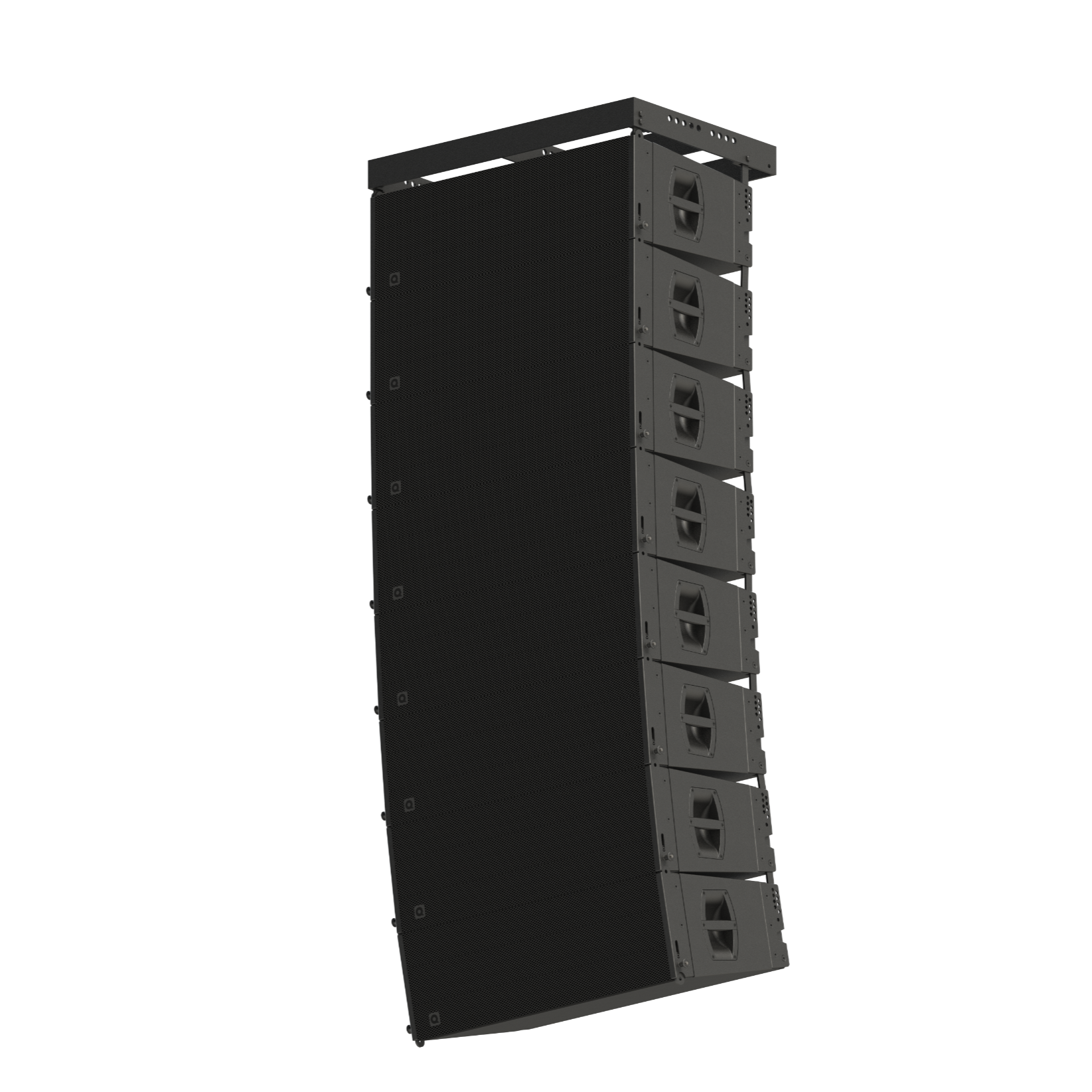

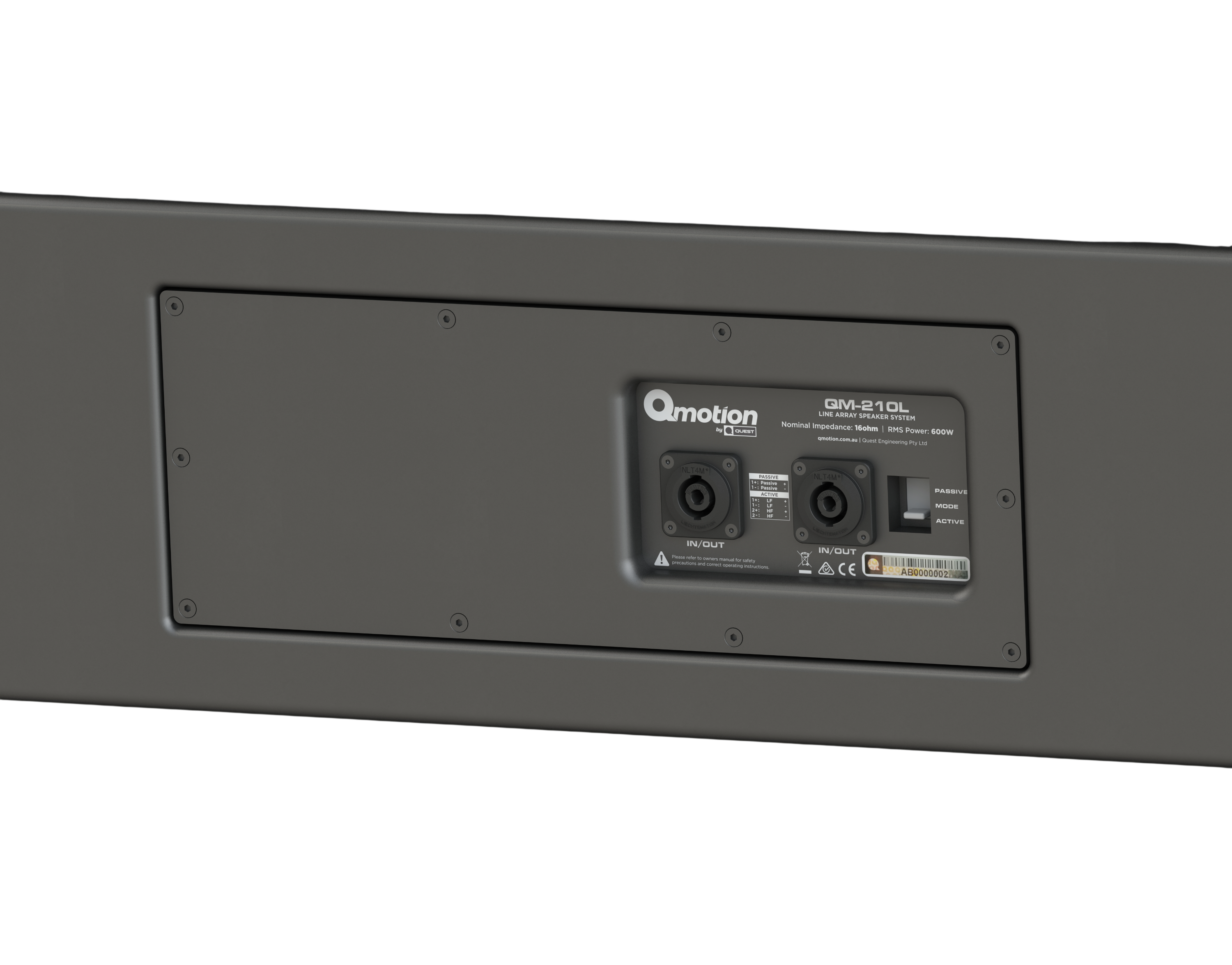

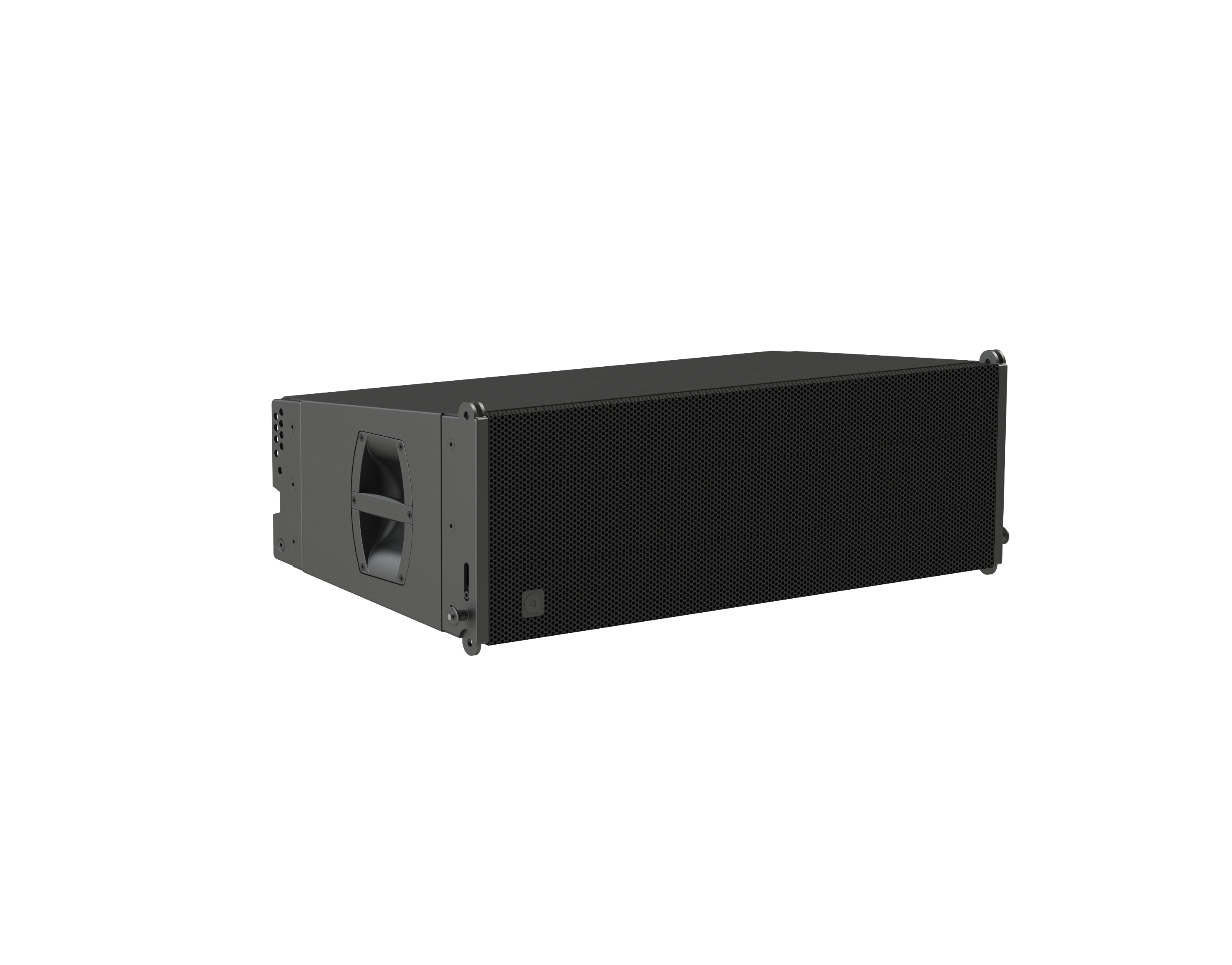

The QM-210L is a compact passive line array element that delivers high sound pressure and precise vertical control for live sound and installed applications. Dual 10-inch ferrite low-frequency drivers are paired with a 1.4-inch exit neodymium high-frequency driver with a 3-inch voice coil, loaded by a planar waveguide for a tightly controlled 100° × 15° coverage pattern. A built-in 1.3 kHz passive crossover with bi-amp switching allows the system to be run passively or actively, with Quest QXD amplifiers providing dedicated DSP presets and control.
The marine plywood enclosure is finished in a waterproof, wear-resistant and UV-resistant polyurea coating, with a steel mesh grille backed by polyester fibre fabric. An integrated aluminium rigging system with stainless-steel quick-release pins, together with short and long fly bars, allows fast, repeatable array deployment. The QM-210L is backed by a 5-year warranty.
Key Specifications
-
Impedance: 16 Ω
-
Transducers: 1.4″ HF & 2 × 10″ LF
-
Dispersion: 100° × 15°
-
Power: 600 W
-
Rigging: Aluminium rigging system
RESOURCE DOWNLOAD

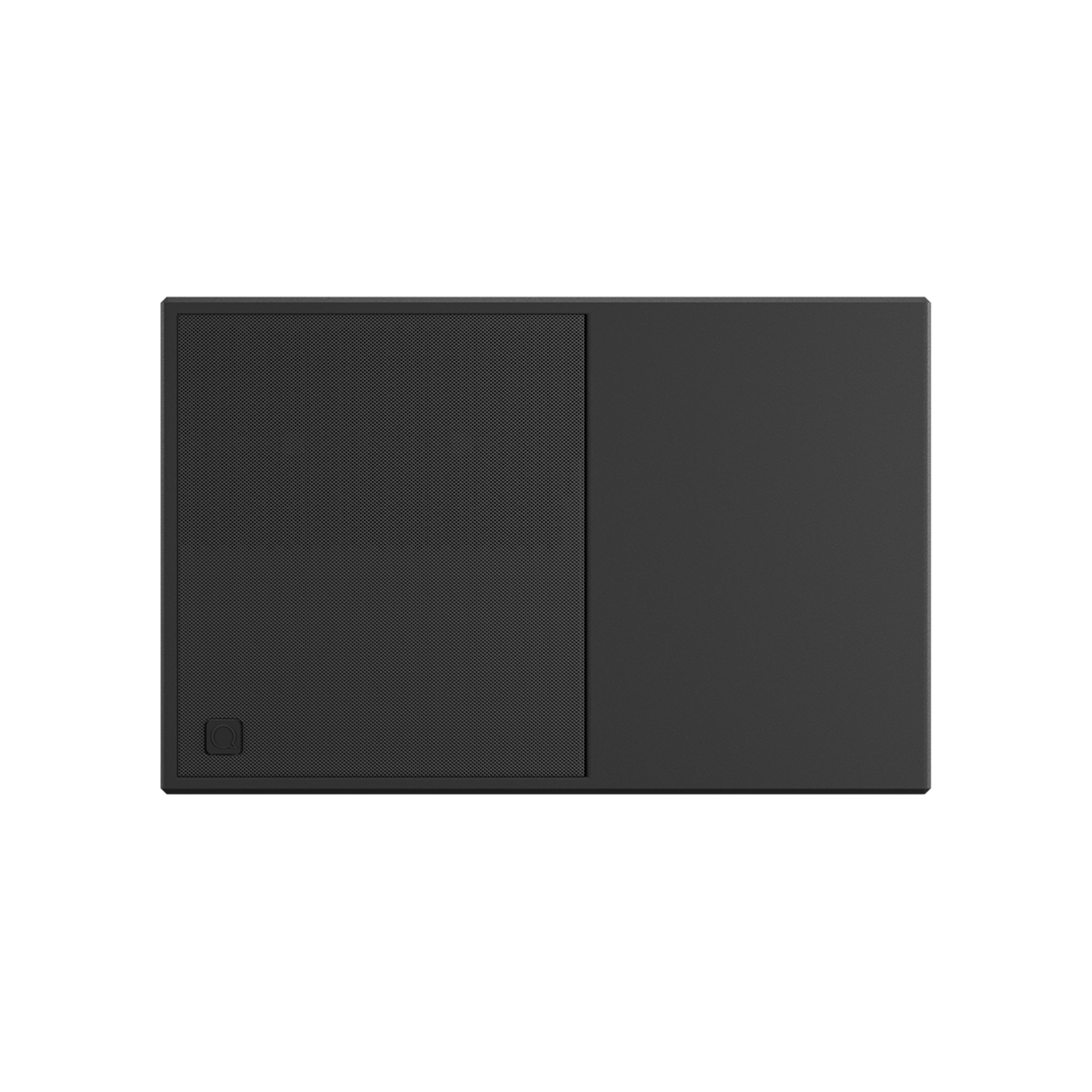

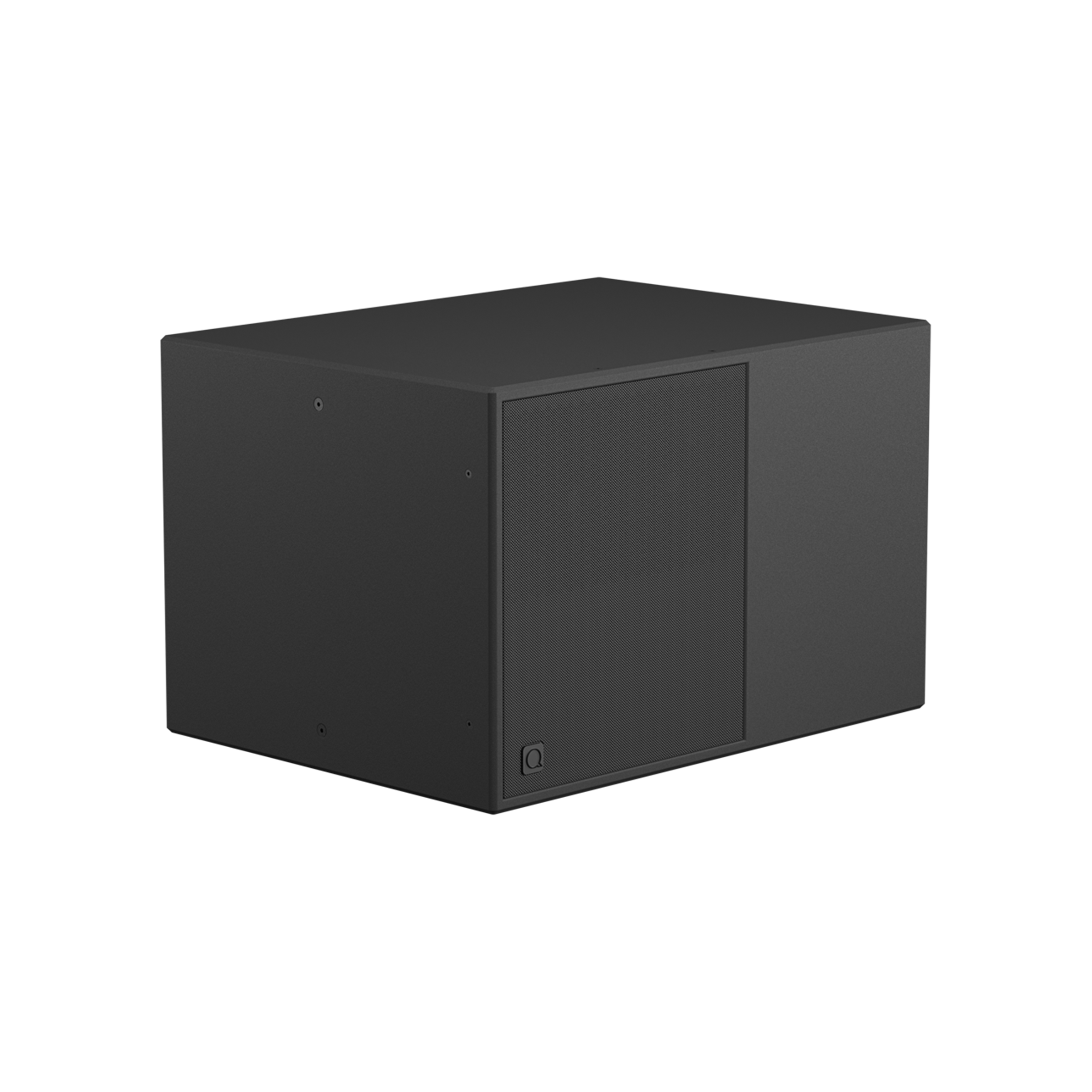

QM-218S SUBWOOFER
18" Installation Subwoofer

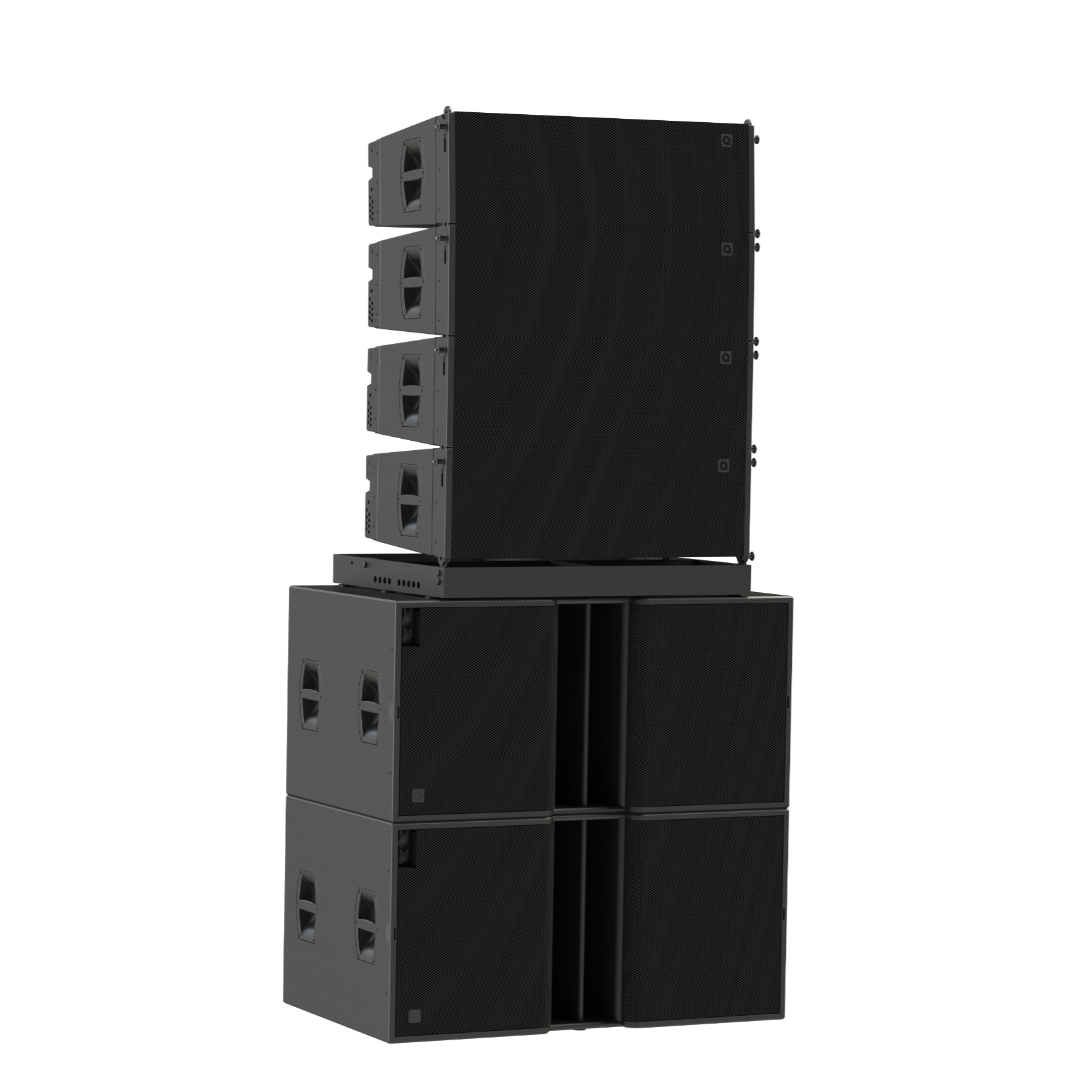

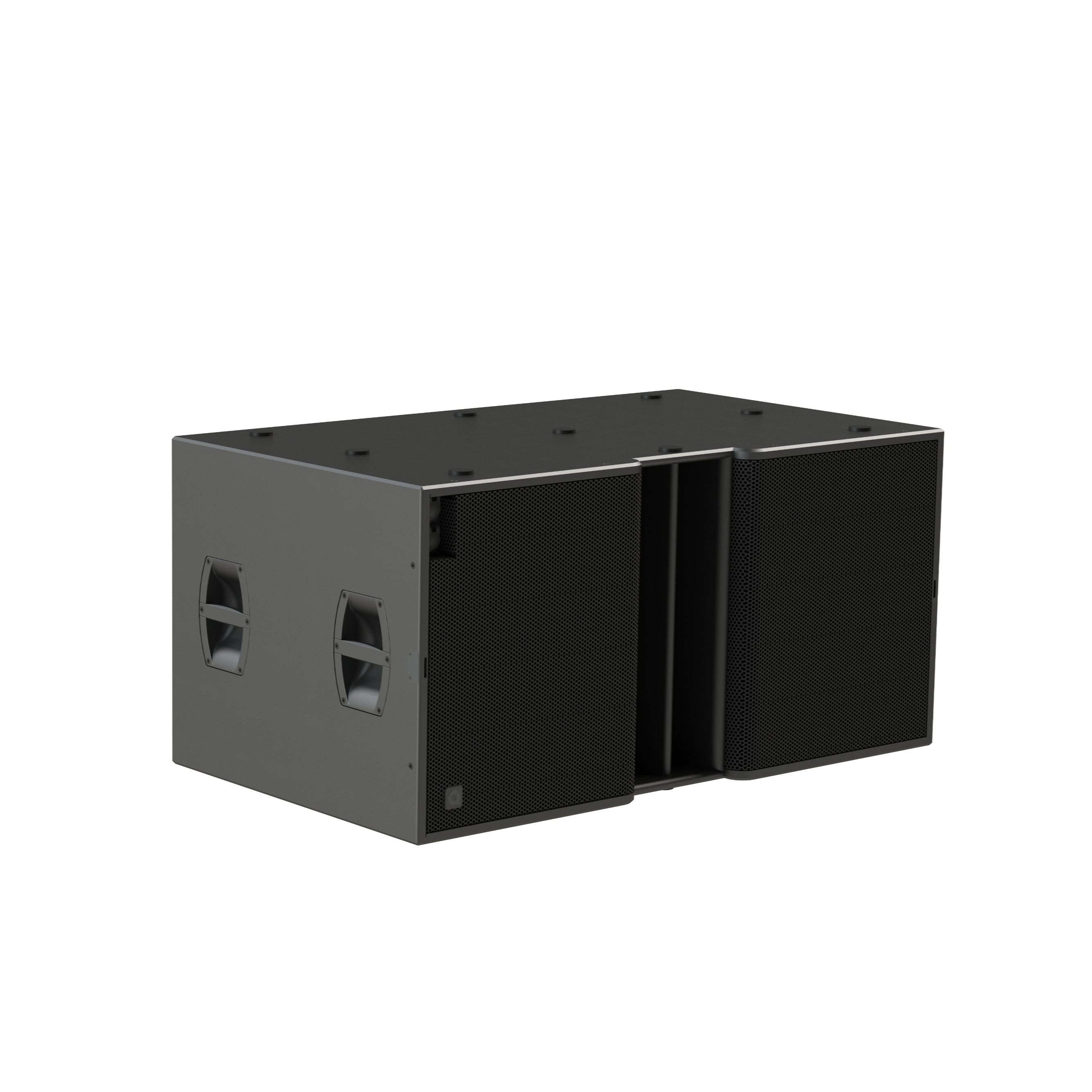

The Qmotion QM-218S is a high-power dual 18-inch subwoofer engineered to deliver deep, authoritative low-frequency extension for demanding live sound and fixed installation applications. Two 18-inch ferrite drivers provide high output with clarity and control, extending down to 25 Hz (−10 dB) with a calculated peak output of 142.8 dB SPL. It complements Qmotion line array system, and Quest QXD amplifiers provide the power, DSP presets and control.
The marine plywood enclosure is finished in a waterproof, wear-resistant and UV-resistant polyurea coating and protected by a steel mesh grille with polyester fibre fabric. speakON connections on both the front and rear panels make cabling flexible. Two handles per side, stacking feet and front wheel board locks make transport and ground-stacking quick and secure. The QM-218S is backed by a 5-year warranty.
Key Specifications
-
Impedance: 4 Ω
-
Transducers: 2 × 18″ LF
-
Dispersion: Omnidirectional
-
Power: 2400 W
-
Features: 2 handles per side, stacking feet, front wheel board locks
RESOURCE DOWNLOAD

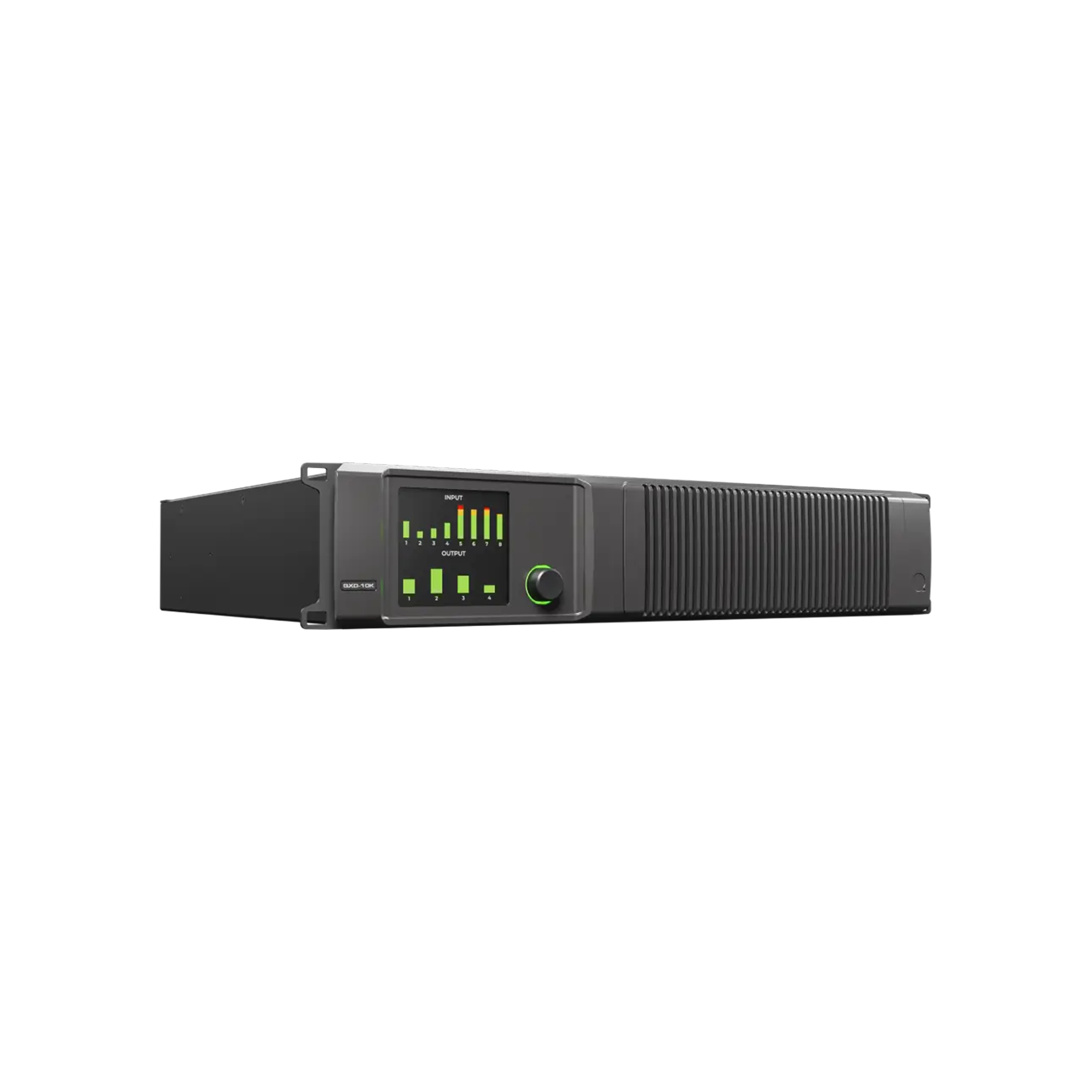

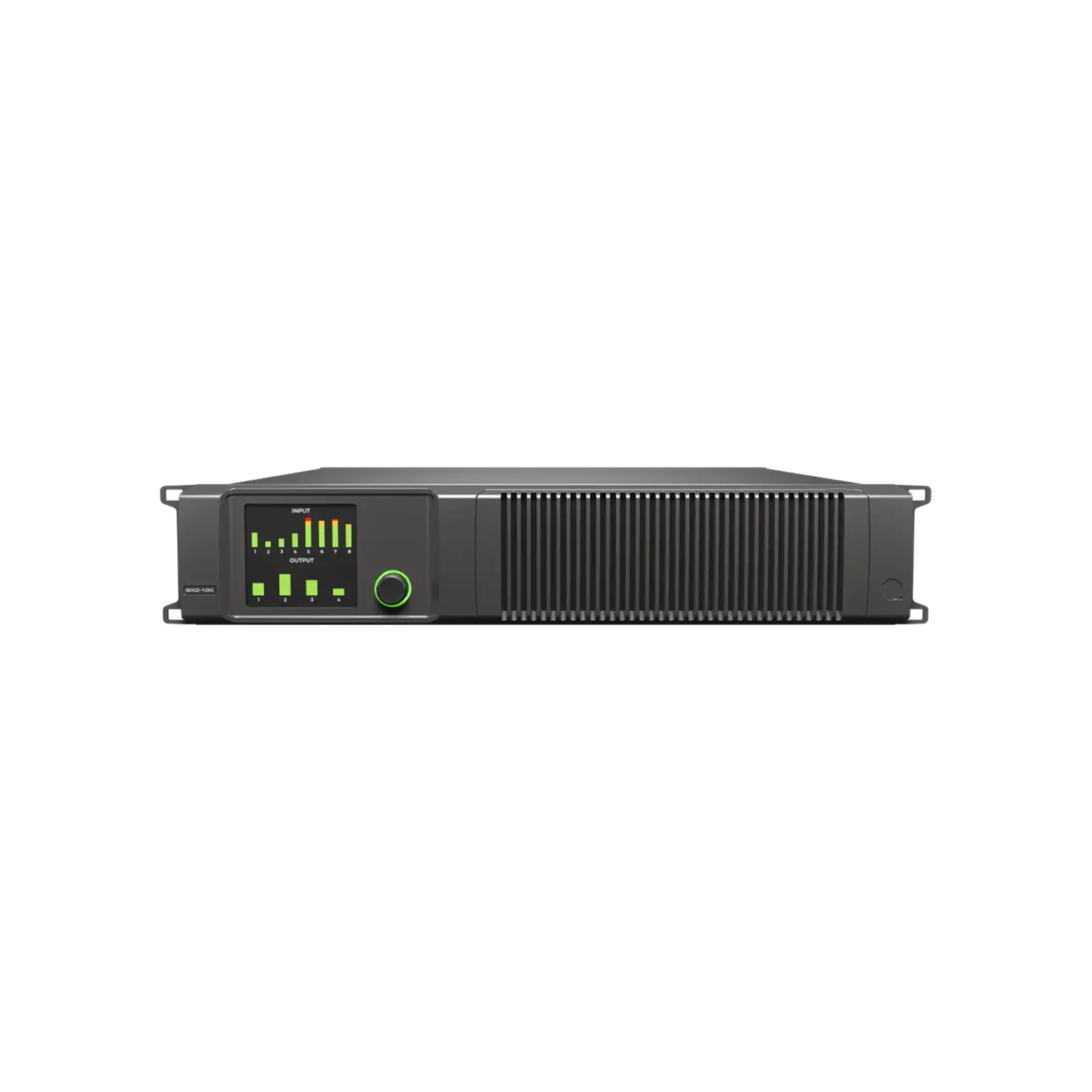

QXD-10K AMPLIFIER
4-Channel 10000W Power Amplifier
with DSP and Network Capability

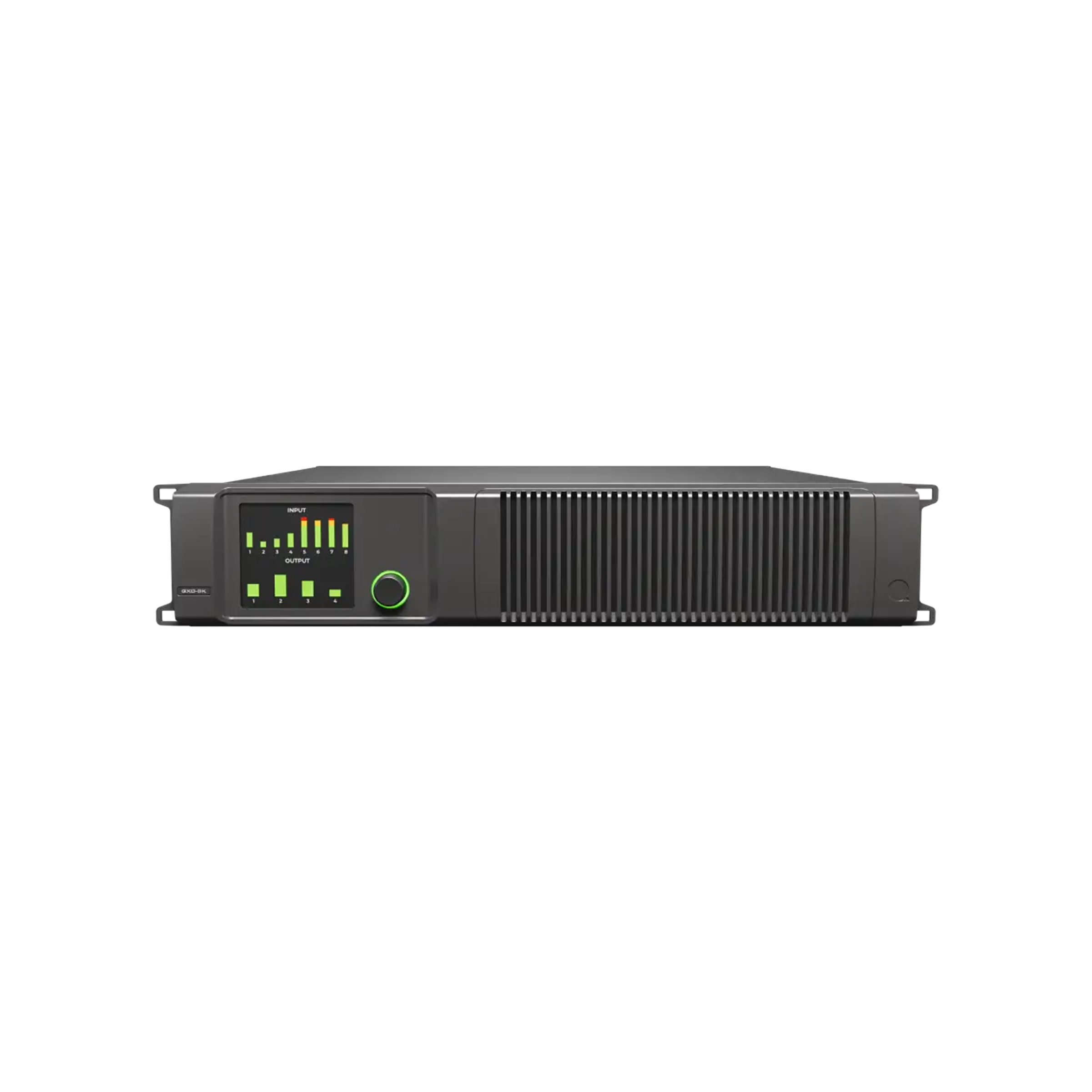

The QXD-10K is a flagship 2RU, 4 × 2500 W Class-D amplifier designed for the most demanding installed sound applications. It delivers exceptionally high output with refined efficiency and ultra-low distortion, supporting 8 Ω, 4 Ω, 70 V, and 100 V operation, and providing up to 10,000 W total dynamic power.
Leveraging UMAC™ Class-D technology, the QXD-10K integrates a 32bit/96kHz DSP for advanced signal processing. This includes FIR/IIR filters, peak and RMS limiters, and Quest's proprietary speaker tuning libraries.
A front-mounted high-resolution TFT display with an LED encoder allows for intuitive configuration. System-wide control and monitoring are supported by RJ45 (network port) and GPIO connectivity, enabling seamless integration into larger control systems.
Equipped with Neutrik speakON® outputs and a powerCON® mains input, the QXD-10K ensures secure connections in high-power environments. Optional Dante™/AES67 audio-over-IP integration provides full compatibility with networked audio systems.
Key Specifications
-
Channels: 4 x 2500W (Low-Z, 70V, or 100V)
-
DSP: 32bit/96kHz FIR/IIR Filters, Limiters, Speaker Libraries
-
Mounting: 2RU Rack
-
Control: RJ45 & GPIO, Front TFT Display
-
Dante® Version Available – additional 4 inputs, Dante® AoIP, AES67 compatible
RESOURCE DOWNLOAD

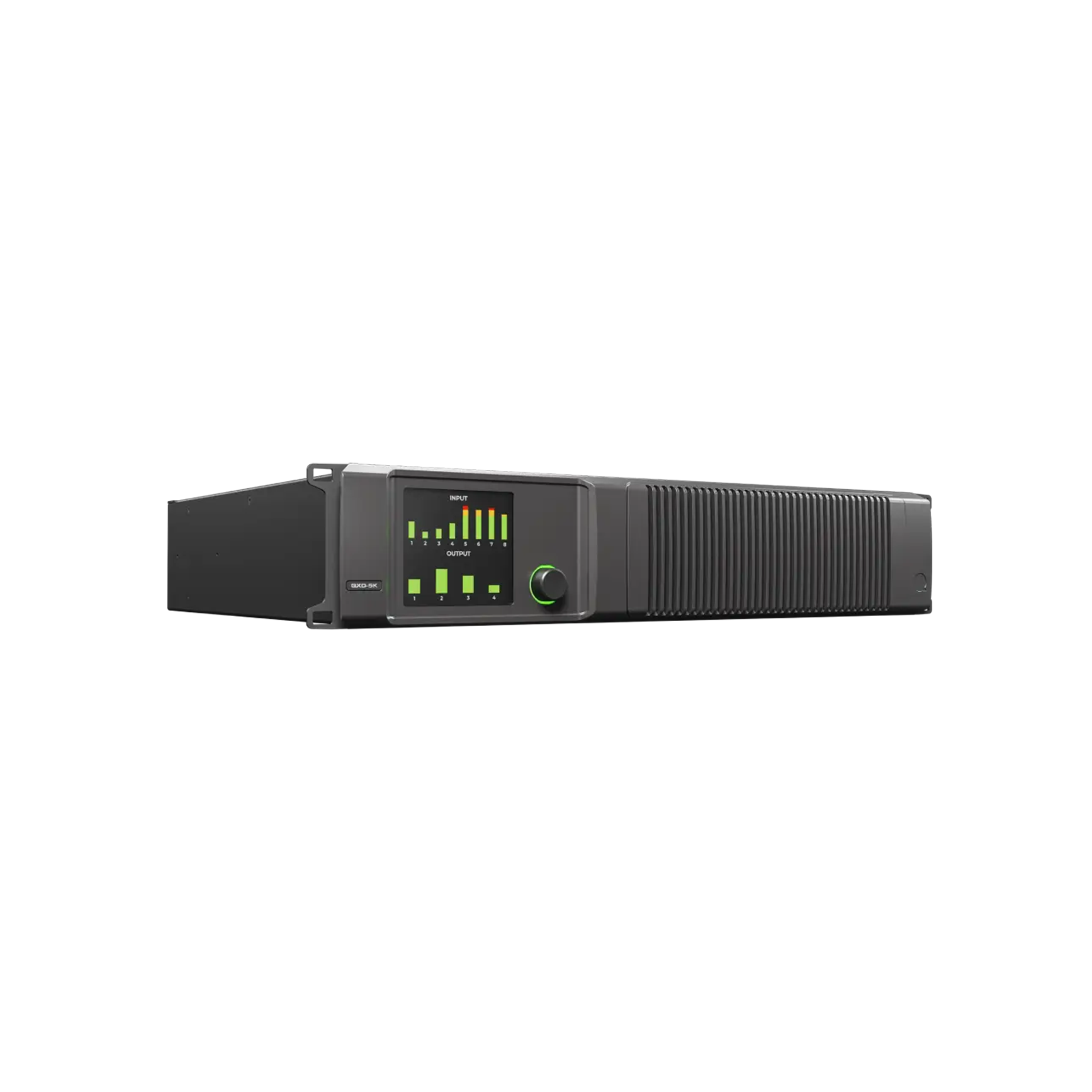

QXD-5K
AMPLIFIER
4-Channel 5000W Power Amplifier
with DSP and Network Capability
The QXD-5K is a high-powered, 2RU, 4 × 750 W Class-D amplifier designed for performance-critical installations. It delivers up to 2500 W per channel in bridged mode and supports 70/100 V operation.
Built on UMAC™ Class-D architecture, this amplifier offers exceptional dynamic range, ultra-low distortion, and highly efficient power delivery. It includes an integrated 32bit/96kHz DSP for precise signal management, featuring FIR and IIR filters, peak and RMS limiters, and onboard Quest speaker presets.
For control, a high-resolution TFT display and LED-illuminated encoder are available on the front panel. Network control and GPIO are accessible via the RJ45 port, allowing for remote management and integration into broader AV systems.
The amplifier features Neutrik speakON® outputs and powerCON® mains connections for professional-grade reliability. Optional Dante™/AES67 expansion adds network audio capability, enabling flexible system integration in complex AV environments.
Key Specifications
-
Channels: 4 x 750W (Low-Z), 2 x 2500W (Bridged), 2 x 1500W (70V/100V)
-
DSP: 32bit/96kHz FIR/IIR Filters, Limiters, Speaker Libraries
-
Mounting: 2RU Rack
-
Control: RJ45 & GPIO, Front TFT Display
-
Dante® Version Available – QXD-5KD (additional 4 inputs, Dante® AoIP, AES67 compatible)
RESOURCE DOWNLOAD

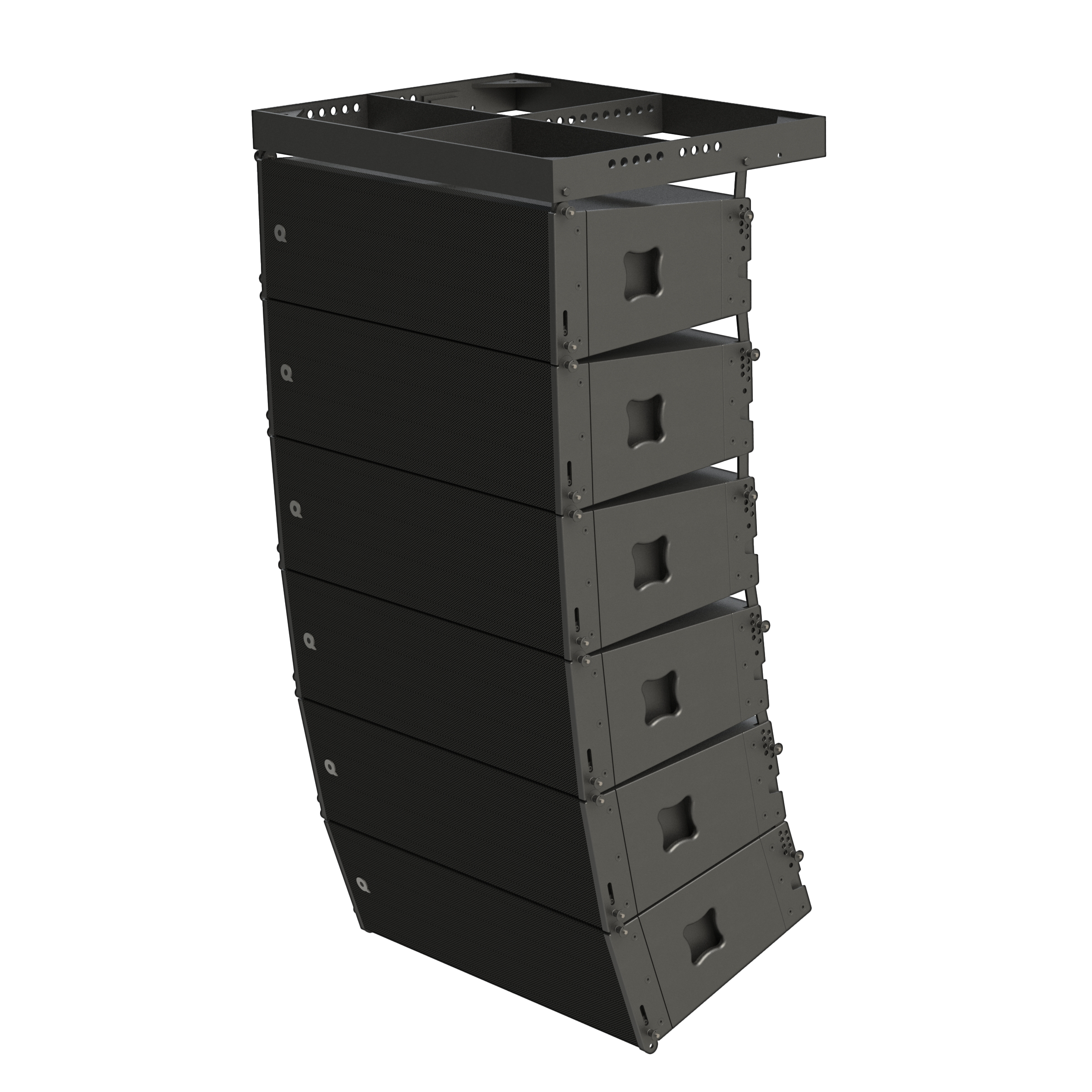

QM210BUMPL
Long Fly Bar for QM-210L
The Quest QM210LBUMPL is a long fly bar for suspending Qmotion QM-210L line array systems. It connects to the aluminium rigging system of the QM-210L, with nine 18 mm rigging points on the sides and fifteen 18 mm rigging points in the middle providing a choice of pick points to set the array angle. Four 17 mm wheel/feet points are also provided. The fly bar is constructed from steel with a black powder-coated finish. Array sizes and working load limits must be confirmed against the Quest rigging documentation before use.
RESOURCE DOWNLOAD
Q-MOTION ACCESSORIES

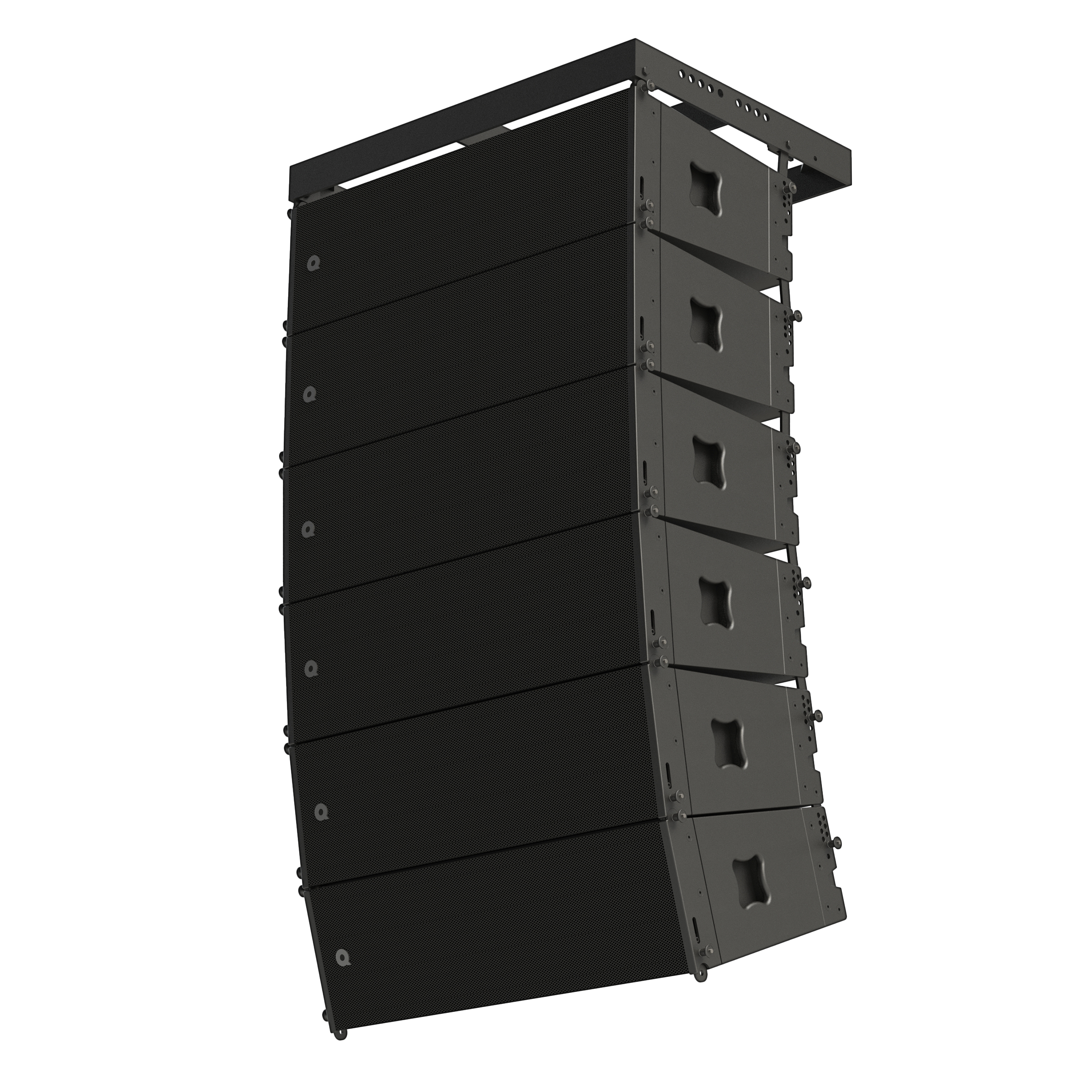

QM210LBUMPS
Short Fly Bar QM-210L
The Quest QM210LBUMPS is a short fly bar for suspending Qmotion QM-210L line array systems. It connects to the aluminium rigging system of the QM-210L, with nine 18 mm rigging points on the sides and thirteen 18 mm rigging points in the middle providing a choice of pick points to set the array angle. Four 17 mm wheel/feet points are also provided. The fly bar is constructed from steel with a black powder-coated finish. Array sizes and working load limits must be confirmed against the Quest rigging documentation before use.
RESOURCE DOWNLOAD
